Ground water depth m (Water Overlay)

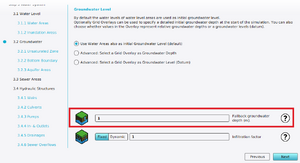

The ground water depth m setting can be configured in the Groundwater step of a Water Overlay wizard when the ground water mode is set to Complete.

Icon	Attribute	Unit	Range	Description	Default value
	GROUND_WATER_DEPTH_M	m	-10000 to 10000	The default depth of ground water in meters.	1

Notes

• This depth can be overridden by Water areas and ground water prequel overlays.

How-to's

• How to add and remove an Attribute

---
